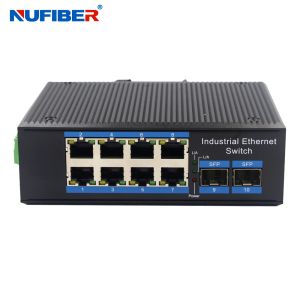

Unmanaged Industrial Switch with 8x 10/100/1000M Rj45 2x1000M SFP
Slot for Connecting Computers Servers and More
Overview
NuFiber’s NF528G-SFP Industrial Ethernet switch, With 8 Port
10/100/1000M Ethernet ports and 2 port 1000Mbps SFP Slot, for
connecting with devices like computer,switch, hub, server, etc, as
well as powering network camera, industrial VoIP phone, wireless AP
and other devices. Specially designed for harsh outdoor
applications. Its 3KV network port surge protection can adapt to
harsh outdoor environment and ensure the reliability of the
uninterrupted PoE system. Power input also chooses
industry-standard types of power.
Features
• 8 Port 10/100/1000Mbps RJ45 with Auto Uplink™ , 2 port 1000Mbps
SFP Slot.
• Automatic MAC address learning and aging
• Automatically support IGMP (Multicasting)
• 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
• LED indicators for monitoring power/link/activity
• Supports 10/100/1000Mbps-Full/Half-duplex
• Supports Wall-mount and DIN-Rail installation for lightning
protection
• Supports Daisy-Chain connection
• Supports Broadcast Storm Control
• Super lightening protection, IP40 protection.
• Excellent heat elimination without cooling fan.
• Redundant dual DC power inputs.
• Redundant Power Inputs
• Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe
City.
• Harsh industrial environment or higher requirement
• -40℃-85℃ operating temperature range.
• 1-Year Warranty
Technical Specification
| Product Name | 8 Port 10/100/1000Base Industrial Ethernet Switch |
| Product Model | NF528G-SFP |
| Interface | 8x 10/100/1000Base-T RJ45 port + 2x 1000Mbps SFP |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; |
| IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) |
| 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
| Fiber Media | Multi-mode: 2KM Single-mode: 20/40/60/80KM |
| Performance Specification | Bandwidth: 20Gbps |
| Packet Buffer Memory: 2M |
| Packet Forwarding Rate:148800pps/port |
| MAC Address Table: 16K |
| Forwarding Mode | Store-and-Forward |
| Protection | Lightening protection, IP40 protection |
| LED Indicators | Power: PWR; Link; Link/Act |
| Power Supply | Input Power: 2x10~57VDC (Terminal Block) |
| Other Specifications |
| Working Environment | Working temperature: -40～85℃ ; Storage temperature: -45～85℃ |
| Relative Humidity: 5%~95 %( no condensation) |
| Industry Standard | FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS: |
| IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) |
| IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) |
| IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV |
| IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV |
| IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) |
| IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
| Shell | IP40 protect grade, metal shell |
| Installation | DIN-Rail or Wall mounts |
| Packing List | 1×Industrial Ethernet Switch (plus terminal block) |
| 1×User Manual/Certificate of quality/Warranty card |
| 1×DIN-Rail mounting kit |
| Certification | CE mark, commercial; FCC Part 15 Class B; VCCI Class B |
| EN 55022 (CISPR 22), Class B |
| MTBF | 300,000 hours |
| Weight & Size | Product Weight: 0.355KG |
| Packing Weight: 0.875 KG |
| Product size (L×W×H): 143.5mm× 130mm× 47mm |
| Packing size(L×W×H): 286mm x 230mm x 60mm |
| Warranty | 1-year |
Ordering information
| NF511G-SFP | Industrial 10/100/1000M 1 SFP port + 1 RJ45 port, DIN Rail type,
DC10~48V, exclude power adapter and SFP module |
| NF512G-SFP | Industrial 10/100/1000M 1 SFP port + 2 RJ45 port, DIN Rail type,
DC10~48V, exclude power adapter and SFP module |
| NF514G-SFP | Industrial 10/100/1000M 1 SFP port + 4 RJ45 port, DIN Rail type,
DC10~48V, exclude power adapter and SFP module |
| NF524G-SFP | Industrial 10/100/1000M 2 SFP port + 4 RJ45 port, DIN Rail type,
DC10~48V, exclude power adapter and SFP module |
| NF518GF-SFP | Industrial 1x1000M SFP port + 8x10/100M RJ45 port, DIN Rail type,
DC 10~48V, exclude power adapter and SFP module |
| NF528GF-SFP | Industrial 2x1000M SFP port + 8x10/100M RJ45 port, DIN Rail type,
DC 10~48V, exclude power adapter and SFP module |
| NF518G-SFP | Industrial 1x1000M SFP port + 8x10/100/1000M RJ45 port, DIN Rail
type, DC 10~48V, exclude power adapter and SFP module |
| NF528G-SFP | Industrial 2x1000M SFP port + 8x10/100/1000M RJ45 port, DIN Rail
type, DC 10~48V, exclude power adapter and SFP module |
Product Picture Packing & Shipping
